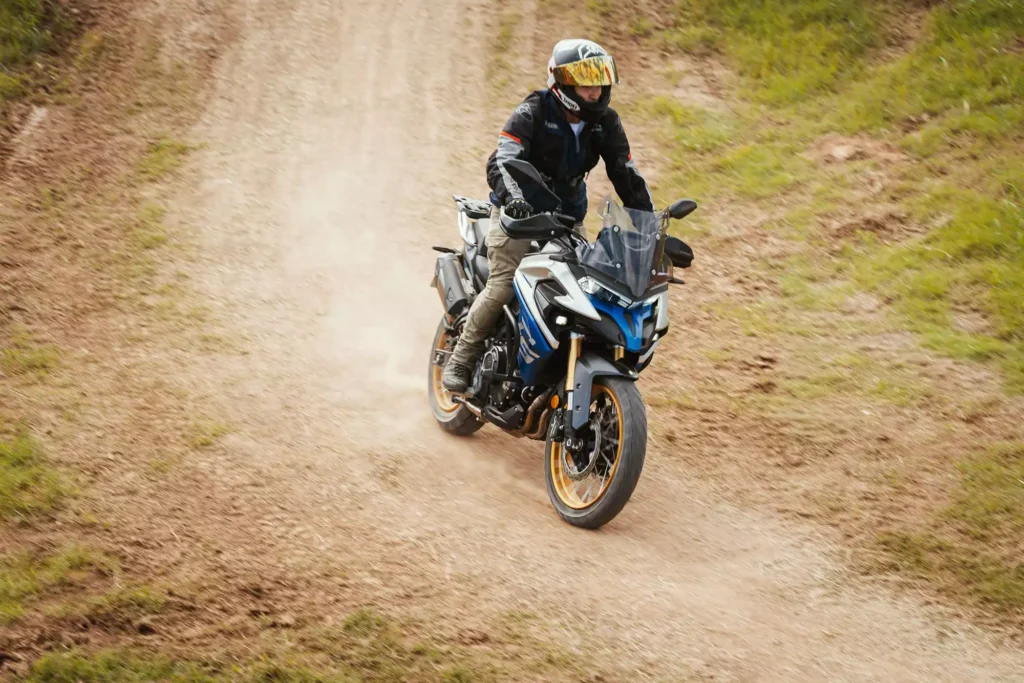

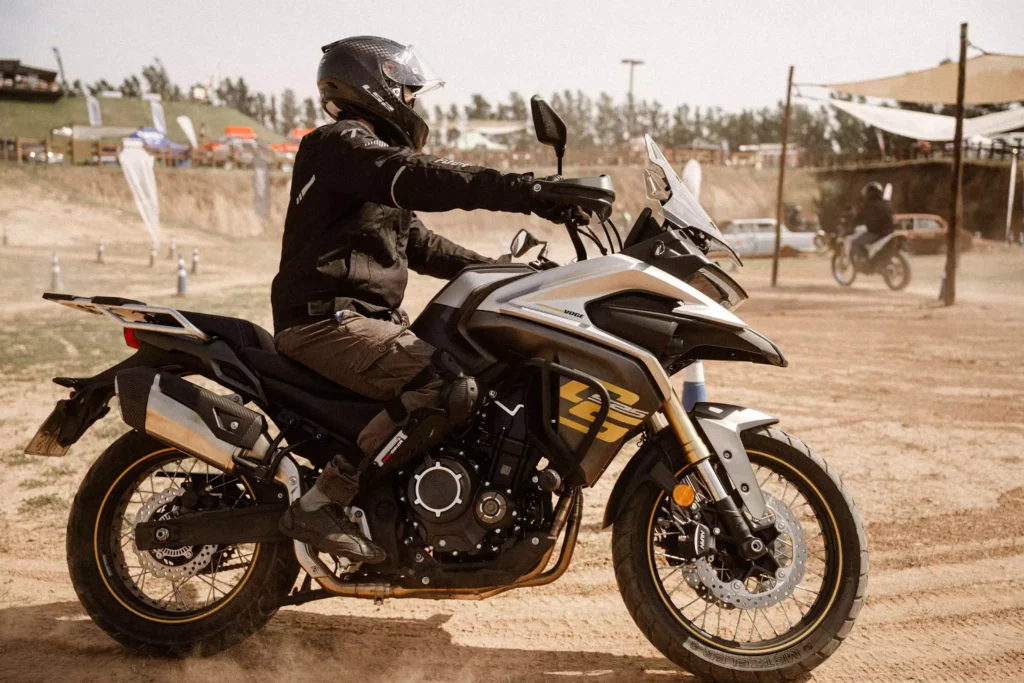

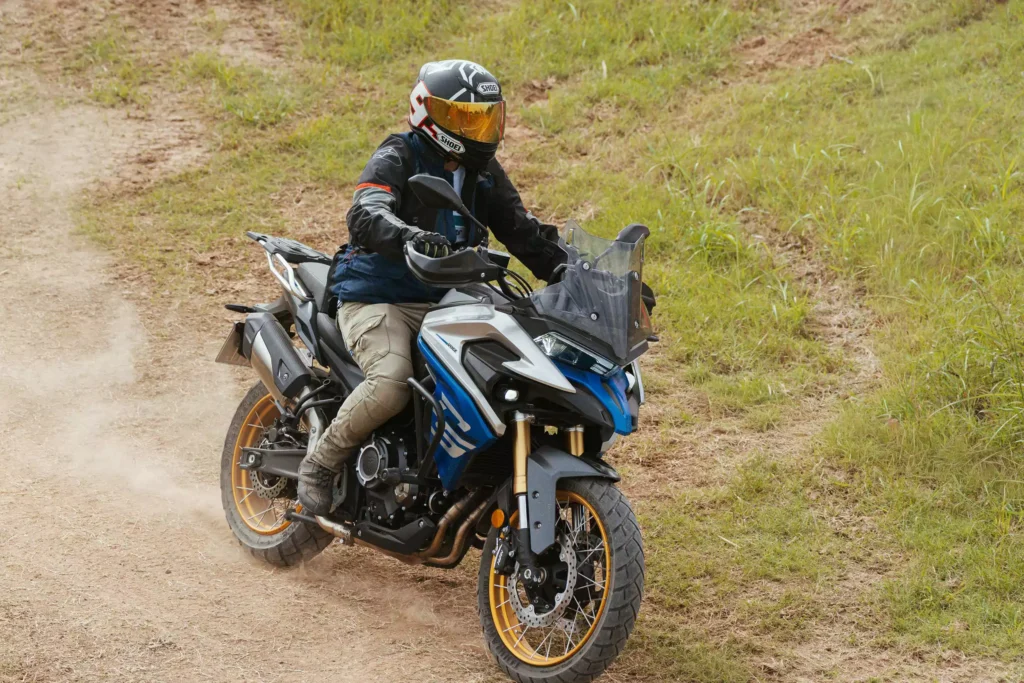

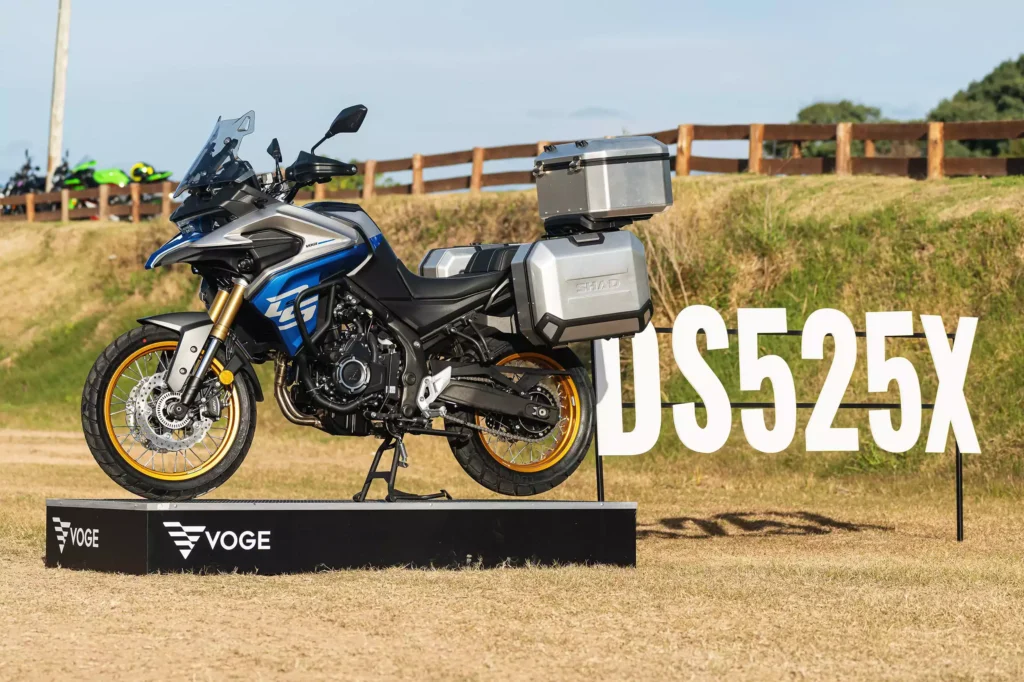

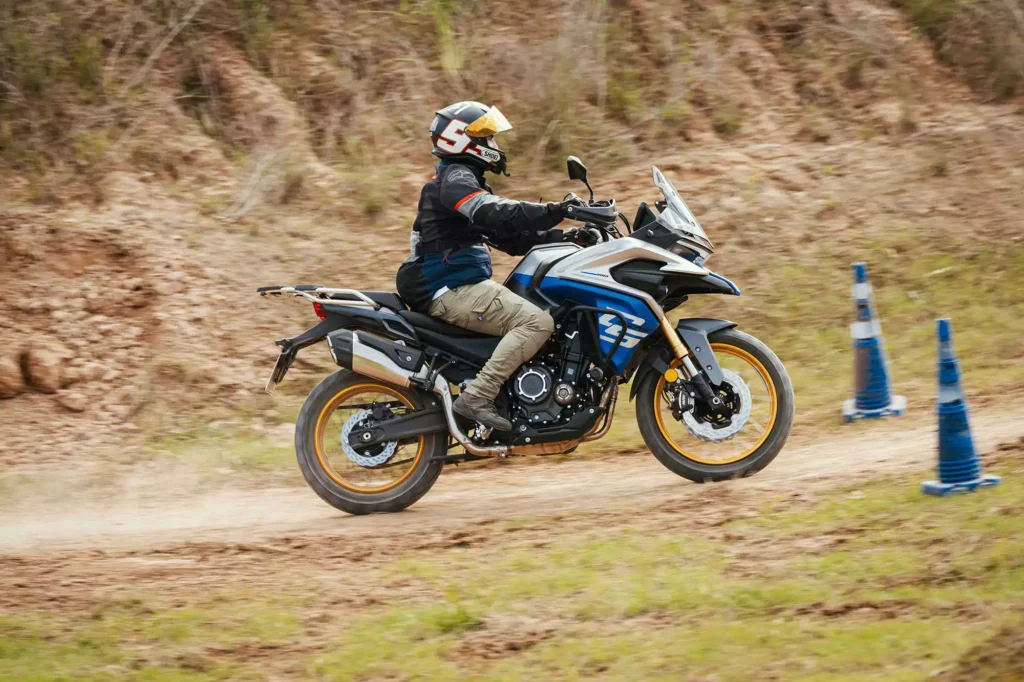

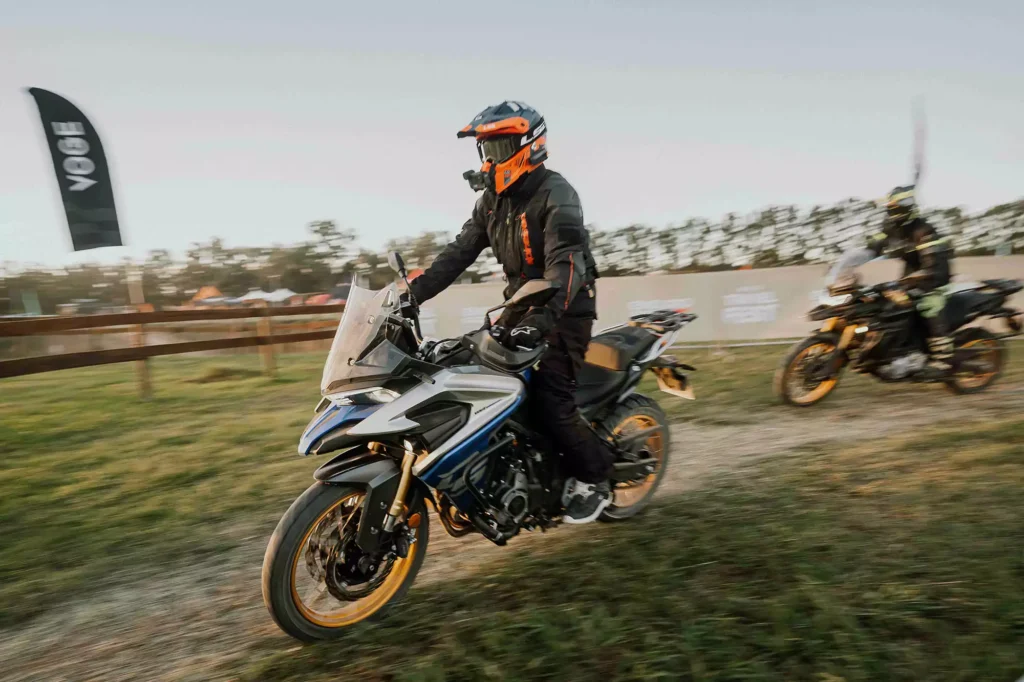

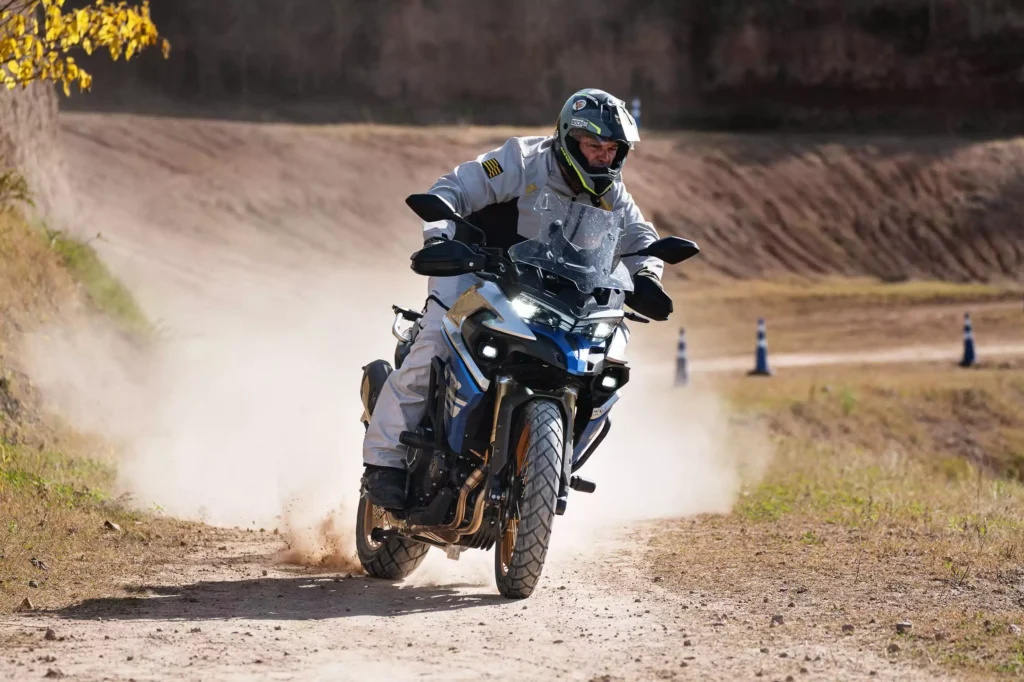

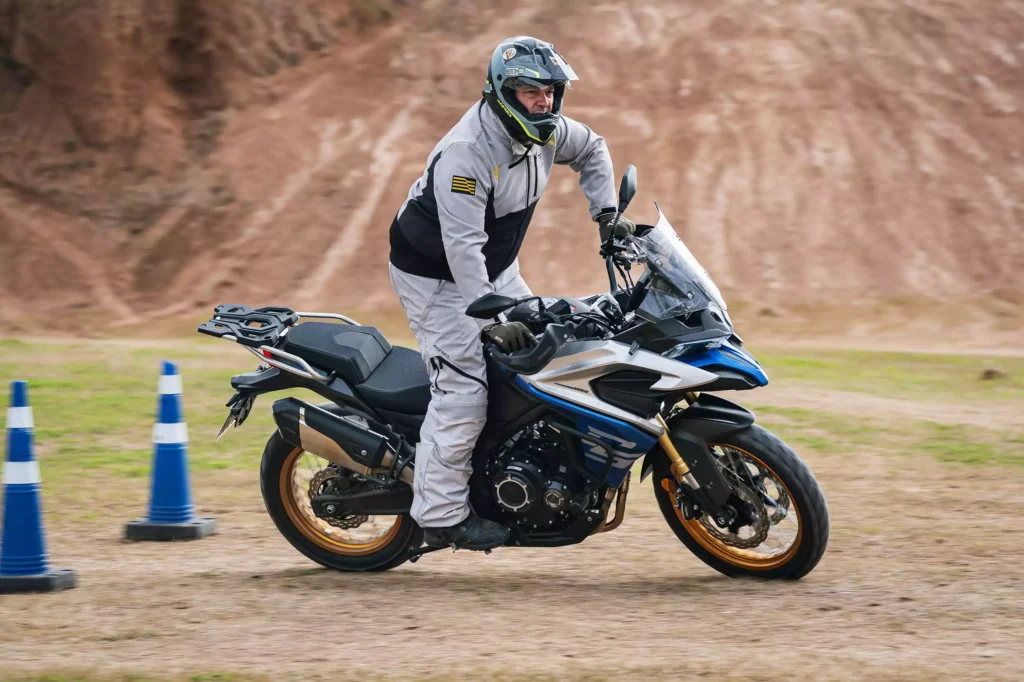

DS525X

All-direction upgraded hard ADV, with stronger power and more travel fun.

Video

Features

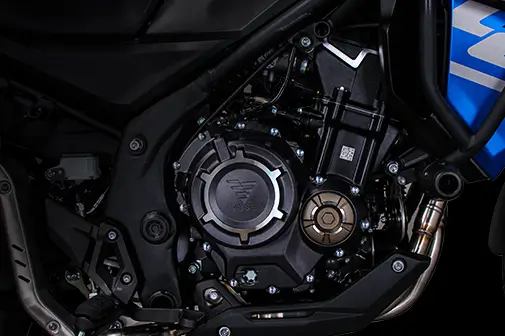

Brand new upgraded power

Brand new upgraded 494cc water-cooled double-cylinder engine has strong output, to ignite driving passion instantly.

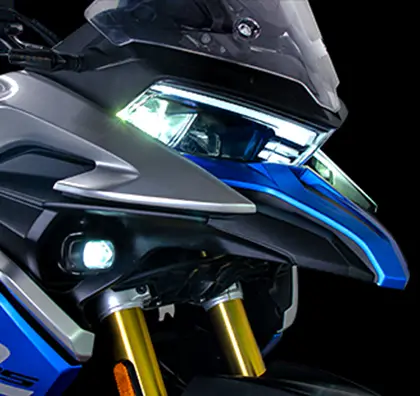

Tough ADV appearance

Tough ADV style brings a more intense visual experience to inspire the ambition to challenge the journey.

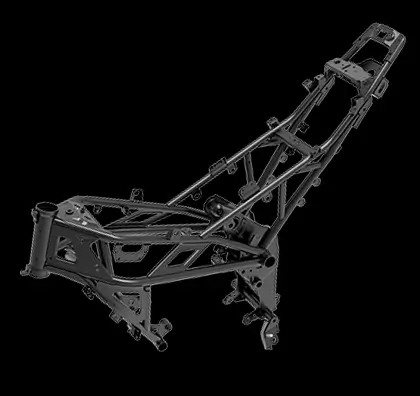

High-strength lightweight frame

Adopt truss structure and lightweight automobile-structural steel materials, to improve the control under the condition of ensuring sufficient strength.

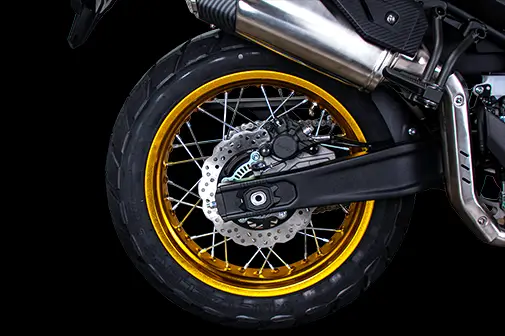

ABS+TCS dual-safety-guarantee

Reduce the probability of wheel locking and sliding, to improve driving safety.

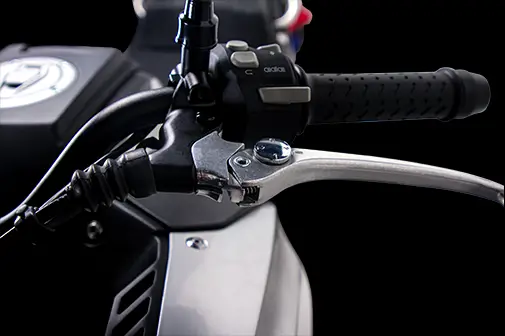

Sliding clutch

The operation is smoother and the deceleration is safer.

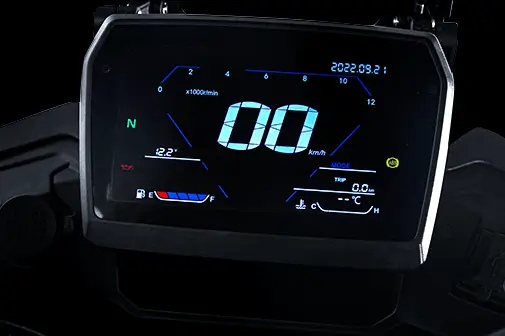

7-inch colored LCD instrument

The display is clear and beautiful, with simple navigation, power mode display, tire pressure display, etc.

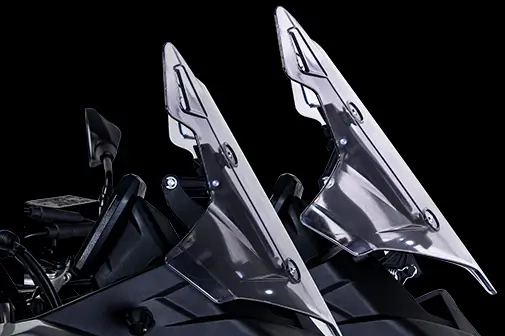

Quick-adjusting windshield

The position can be tool-free adjusted easily. Height difference between high and low gears is 60mm, to meet the needs of multi-scenario use, taking into account both noise reduction and protection.

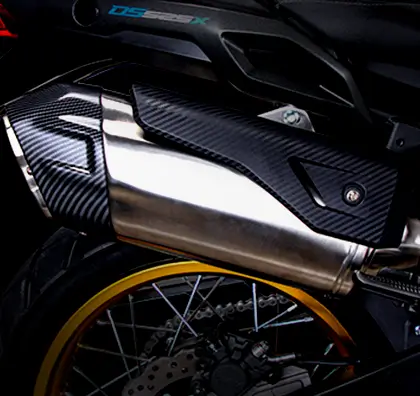

High muffler

Exhaust vent is 650 mm above the ground, to provide excellent wading performance, meanwhile effectively reducing the friction with the curb.

Parameter details

Overall size (L × W × H)2170mm×820mm×1380mm
Wheel base1456mm
Seat height810/830mm
Ground clearance200mm
Net weight190kg
Maximum speed160km/h
Front  tire  size110/80-19（Metzeler）
Rear tire size150/70-17（Metzeler）
Fuel tank volume18 L
Front suspensionUp-side-down( KYB )
Rear suspensionSingle shock( KYB )
Front brakeDual disk brake（Nissin）
Rear brakeRear  disk brake（Nissin）
ABS2 channel ABS with TCS
wheelSpoke wheel
LightFull LED lights
MeterLCD
Engine typeDual cylinder, 8 valves, liquid-cooled，DOHC
Displacement (cc)494
Compression ratio11.5:1
Maximum power39.6kW/ 8500rpm
( 35kW EURO Ⅴ)
Maximum torque50.5N.m / 7000rpm
Borc×Strokc（mm）68×68
Ignition systemEFI
Gearbox6-speed
