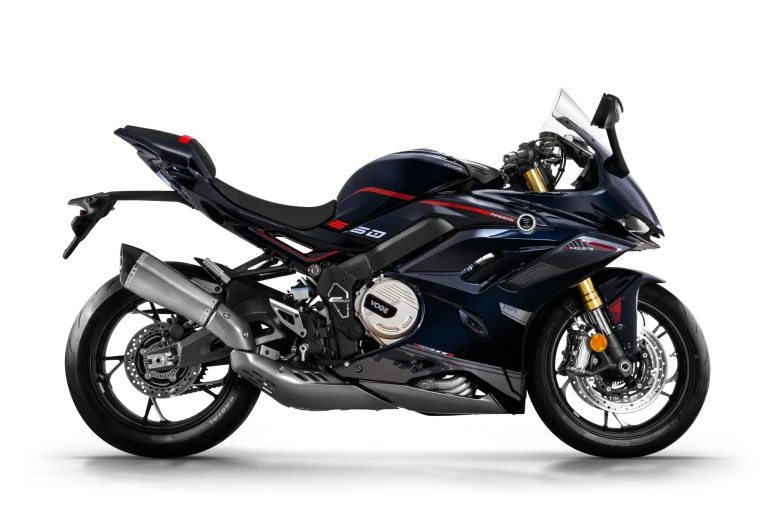

RR525

Base upon analysis of aerodynamics, adjusted power face to racetrack, play with passion by ground flying

Video

Features

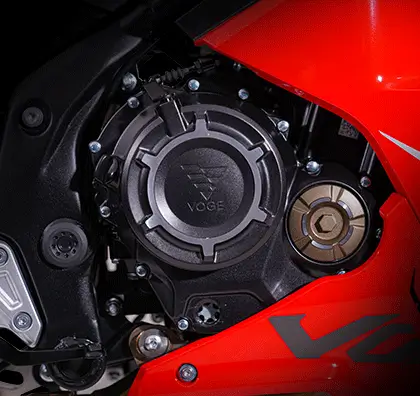

Upgrated engine with twin-cylinders of water cooling, stronger power while full of fighting will.

The upgrated engine of KEL525, whose top power rise up to 39.6kW with maximum torque of 50.5N.m!

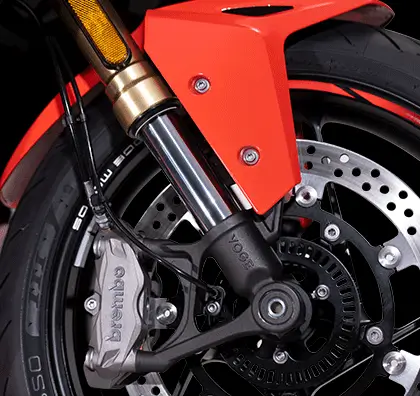

Adjusted shock absorber face to racetrack only

Front shock absorber of upside down + Adjustable rear shock absorber with connecting rods, after adjustment for racetrack, stable and sporty

Caliper for front disc brake of Brembo

Powerful braking strengthen your confidence

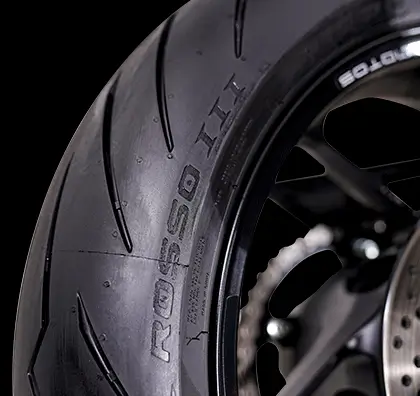

Semi-hot melt tire of 3rd generation from Pirelli devil

Stable in grabbing ground, fancy driving with high performance

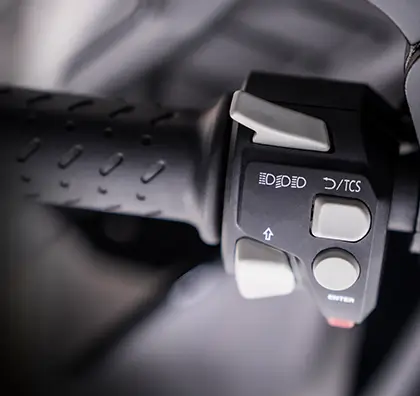

TCS

Traction control system precise working ensures smooth riding experience

ABS

ABS with double passage,makes respond in lighting speed, greatly promote

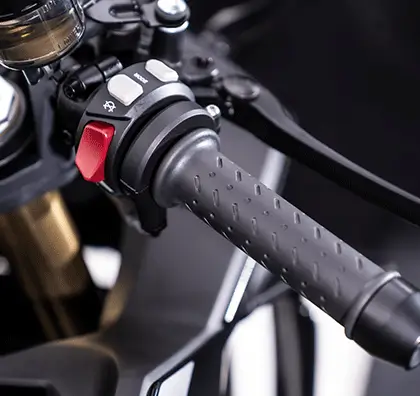

Mode of multi-power

Mode shift by 1 key pressing among Normal/Sport/Leisure, match working condition for driving only

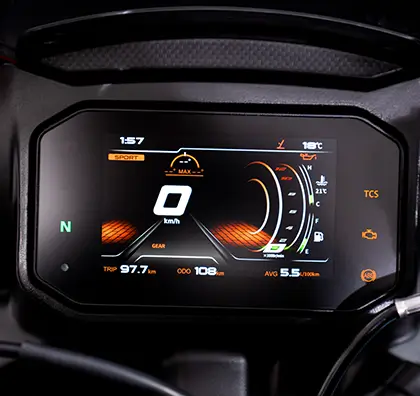

Instrument of TFT

Mobile screen projection/Caller ID display

Parameter details

Overall size (L × W × H)2030×760×1170mm
Wheel base1430 mm
Seat height790 mm
Ground clearance150mm
Net weight153 kg
Maximum speed191 km/h
Front  tire  size120/70 ZR17
Rear tire size160/60 ZR17
Fuel tank volume:14.5 L
Front suspensionUp-side-down(Options KYB)
Rear suspensionSingle shock with unique-style swing arm
Front brakeDisc brake(Brembo)
Rear brakeDisc brake(Nissin)
ABS2 channel ABS with TCS
WheelAlloy wheel
LightFull LED lights
Meter5″ TFT with bluetooth
Engine typeDual cylinder, 8 valves, liquid-cooled，DOHC
Displacement (cc)494
Compression ratio11.5:1
Maximum power41 kW / 8500 rpm
Maximum torque50.5N.m / 7500 rpm
Borc×Strokc（mm）68×68
Ignition systemEFI
Gearbox6-speed
